镀锌板材厚度

Working thickness for GS

0.4-0.8mm

镀锌板宽度 Width sheet for GS

50-150mm

织物尺寸Poly cloth size

100-300mm

成型速度 Working speed

0-10m/min

主机功率 Main machine Power Capacity

3KW

主机尺寸 Dimension  of the main machine

3000×1200×1500mm

主机重量  Weight  of the Main machine

2500KGS

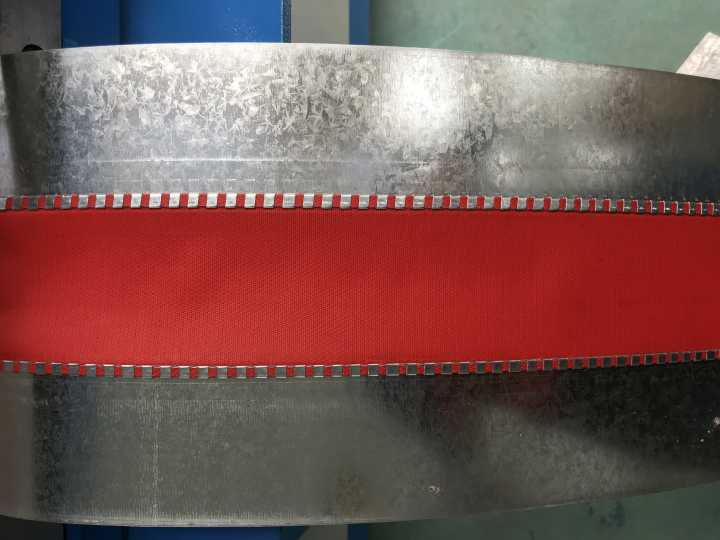

软接头宽度

Width of the Aluminum Flexible Duct Connector

由镀锌板宽度和织物尺寸决定

Dep on the width of the GS sheet and the Poly cloth size
