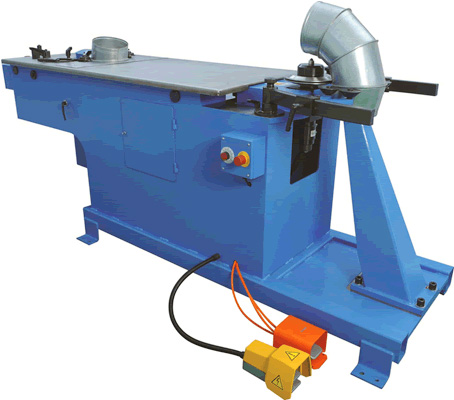

液压弯头机SBEM-1250
SBEM-1250技术参数
|
￠125 mm – ￠1250mm |
|
|
加工板厚Thickness of strip |
钢Black steel 0.4-1.2mm |
|
镀锌板Galvanised steel 0.4 -1.2mm |
|
|
不锈钢Stainless steel 0.4-0.8mm |
|
|
铝 Aluminium 0.4-1.2mm |
|
|
加工板宽Width of strip |
Standard 137mm |
|
最大成型速度Maximum forming speed |
120m/min |
|
电压Electrical power |
380V/50HZ/3PH |
|
液压油Hydraulic oil |
55L |
|
消耗压缩空气Consumption of com-pressed air |
75L/hour 6bar |
|
功率Motor power |
4Kw+120W冷却风扇（Cooling fan） |
|
重量Weight |
750kg |
|
外形尺寸Dimension |
2650 mm×700 mm×950mm |
